*product photo is for illustrative purposes. Photos of Ultimate 3.3 will be added

Description

The Ultimate 3.3 is intended for use in potentially explosive atmospheres of gases, vapors and dusts. The product is a certified for explosive environments and it is based on the global Sigfox network:
- Category:
  II 2G Ex ib IIB T4 Gb
  II 2D Ex ib IIIC T135°C Db

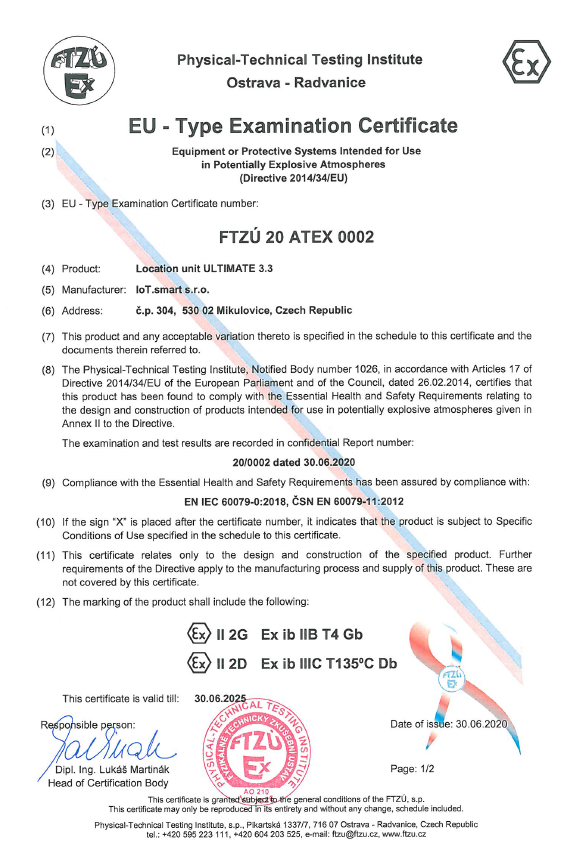

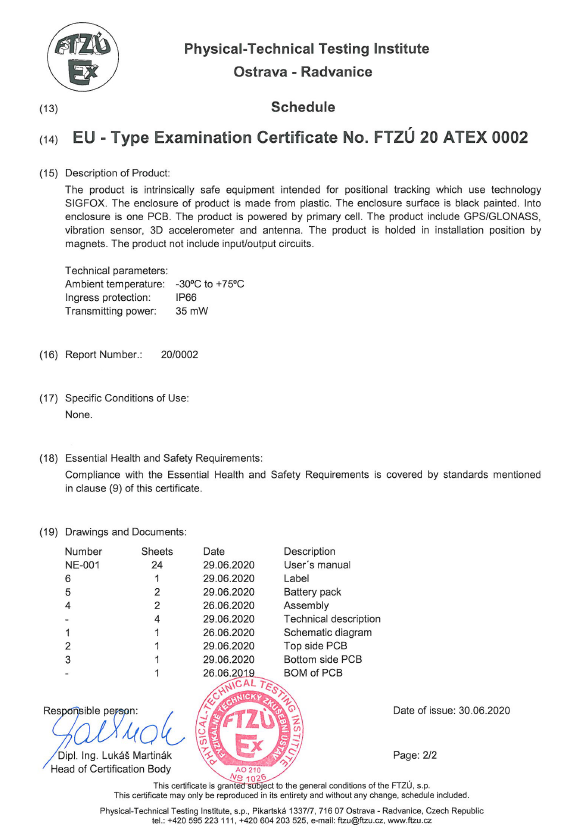

- certification is performed according to standards CSN EN IEC 60079-0: 2018, CSN EN IEC 60079-11:2012
- certification of the production process is performed according to CSN EN IEC 80079-34:2012
- special durable device for commercial usage in heavy industries
- GPS/GLONASS, remote configuration
- shake sensor, 3D accelerometer
- active antenna, temperature sensor
- energy efficiency, endurance, battery life for up to 10 years
- easy to install, protection (IP66)

Technical Specification

Size160mm x 80mm x 55mm
Weight428g
Battery typebattery module designed for explosive atmospheres
Autonomy6 to 10 years
Geo - localisationshigh precision GNSS receiver
Emissions class: Sigfox ready U0, RCZ1, CFU 868.13MHz/CFD 869.525MHz
ProtectionIP66, IK07/IK08 box, NEMA 1, 4, 4X, 12, 13
Enclosurepolycarbonate IP67
Operating temperature-30°C to +75°C
Storing temperature-30°C to +75°C
Data transmissionSigfox 25 mW/14 dBm, 162 dBm, 144 msg per day
GNSSGPS/GLONASS - TTFF <15 s @ -130 dBm, <5s @ - 130 dBm, 1 s @ - 130 dBm
GNSS technologySBAS (WAAS, EGNOS, MSAS, GAGAN), AIC, LOCUS, EASY, QZSS, AGPS
GNSS protocolNMEA - RMC, VTG, CGA, GSA, GSV a GLL
Shock sensoromnidirectional
3D accelerometer±2g, ±4g, ±8g measurement range
Antennabuilt-in GNSS and UNB Sigfox
Installationintegrated NdFeB magnets
